Hobbywing HWI38020503

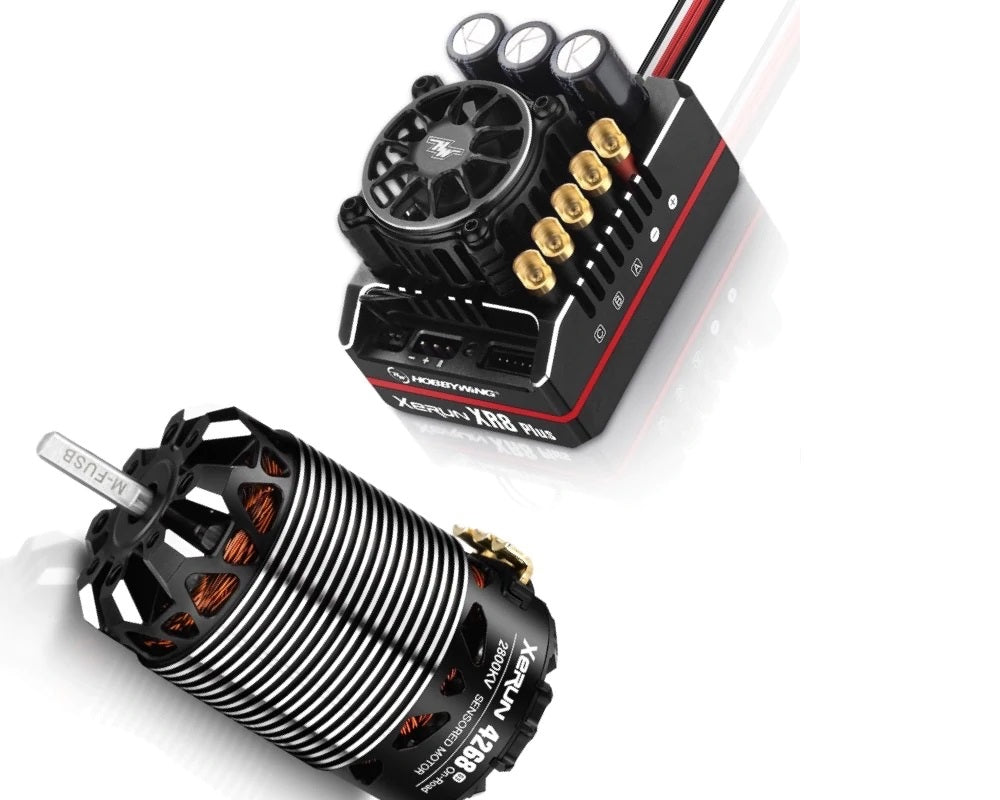

Hobbywing HWI38020503 XR8 Plus Combo G2S ESC + 4268 G3 Motor (2800kv)

Regular price
$349.99
Sale price
$349.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Efficient heat dissipation system with lower temperature rise
The frameless fan design is a patented technology. The rapid transmission of internal heat to the integrated housing radiator are made up of high airflow from the side of the fan and a copper thermal conduction sink on the internal
power plate. These are built into high-reliability thermal systems to ensure that it is always in good thermal condition.

Durable frameless fan
The all-new frameless fan blades uses a special material and are extremely hard and reliable. It greatly reduces the damage of the fan blades caused by the impact of small stones, sand and other foreign objects. Thus, reduces the failure rate of the fan than compared with the traditional pbt fan.

18thpower system, Boost & Turbo Timing Technology
This ESC pairing with Hobbywing motor can start Turbo Timing technology which succeeded in 18th On-Road contest. It supports 48 degrees Boost and Turbo Timing. When pairing with Hobbywing 42684274 G3 motor, the max. speed can be promoted by 50%. Easily win your rival.

Internal Battery-Reverse Polarity Protection Circuit
With the Built-in Reverse Voltage Protection circuit, ESCs internal parts are all protected from Cross Connection of battery power.

RPM speed limit function
The ESC is able to support up to 6 different speed (RPM) selections to meet the needs and demands of various competitions in the world. It can be programmed through using the latest OTA Bluetooth module or the traditional 3in1 program box.

Programming Upgrading Data reading wirelessly
With Hobbywings OTA module and smartphone (with the HOBBYWING HW Link App installed), the user can program parameters, upgrade firmware and heck relevant data of the ESC

Easy Obtain Running Status with Real-time Data Recording Function
With Hobbywings OTA module, Connect the HW Link App to the ESC and open the real-time data recording function, to check the throttle, voltage, current, temperature, RPM and other data in real-time. Easy obtain running status of ESC and motor.
Note: Due to transmission distance of bluetooth, the effective distance is
only about 5m!

Multiple Programmable Items
The ESC contains nearly 30 adjustable parameters, including Throttle PWM Frequency, Brake Frequency, Softening Value Range, Boost Turbo Timing which are commonly used in 110th XR10 Pro series brushless ESC. It can accurately adjust the power settings to suit any driving style and track surface. Parameter are optimized for top-level competition applications.
Note: Use appropriate settings provided by the factory or team drivers. Check operating temperature in order to maximize your
electronics. The wrong settings may damage the ESCmotor!

Capacitor Thermal Protection
Capacitor thermal protection implemented by the ESC will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload.

Super Internal BEC
The built-in switch mode BEC with a maximum output of 15A and voltage adjustable from 6V to 8.4V (step:0.1V) allows the use of various standard servos, high voltage servos.

Excellent dustproof performance
The ESC is IP5X. Its excellent dustproof performance can easy to overcome various On-Road & Off-Road contest track.

Custom ultra-soft 11AWG silicone wire
The ultra-soft 11AWG silicone wire is specially chosen for this product. The wire is ultra-flexible and low in resistance, making it the perfect combination to for your electronics.
